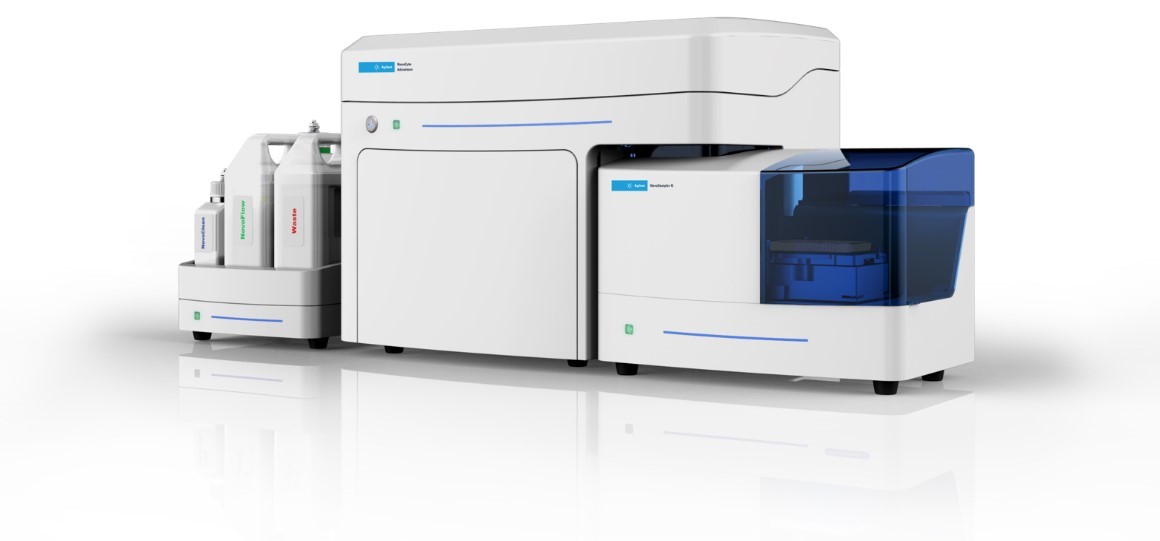

Agilent NovoCyte Penteon
The NovoCyte Penteon flow cytometer builds on its successful predecessor, the NovoCyte, and provides an expanded set of capabilities that accommodate today’s high-end and increasingly sophisticated multi-color flow cytometry assays. It is equipped with five lasers (355, 405, 488, 561 and 640 nm excitation wavelengths) and 30 ultimate photodetectors called Silicon photomultipliers (SiPM) therefore has the flexibility to choose from up to 30 fluorescence channels. The NovoSampler Q can be integrated into different laboratory automation platforms and efficiently processes both FACS tubes (using a 40-tube rack) and 24-, 48-, 96-, and 384-well plates. The intuitive and industry leading NovoExpress software has been further advanced, providing an exceptional user experience in data acquisition, analysis and reporting.
Features:
- Expanded flexibility with 30-fluorescence channel options using 5 lasers
- High sensitivity and resolution to provide high reproducibility and stability
- Intuitive and powerful software for data acquisition, analysis, and reporting
- Smart-design functionalities and walk-away operation to simplify your workflow
- Automation-ready capability for high throughput needs
- Wide, 7-log dynamic range eliminates the need for routine detector adjustments
- Excellent scatter resolution to detect small particles
For greater details please go to https://www.agilent.com/en/product/research-flow-cytometry/flow-cytometers/flow-cytometer-systems/novocyte-penteon-flow-cytometer-1270342
- NovoCyte Penteon Maintenance Guidelines
- NovoCyte Penteon Default Filter Configuration 30 Color
- NovoCyte Penteon Panel Design Tool (Excel to Download)
- NovoSampler-Q Minimum Sample Volume
- NovoExpress exported FCS File: How to import into FlowJo on MAC OS Computer
- NovoCyte Penteon Flow Cytometer Operator’s Guide
- NovoSampler-Q Operator’s Guide
- NovoExpress Software Guide
- NovoCyte Penteon Optical Configuration
- NovoCyte Penteon Brochure
